Bluetooth Connector S-BC from Votronic

The Votronic Energy Monitor consists of a special communication module (Bluetooth Connector S-BC) which, in conjunction with a Votronic solar charge controller (from 2014 serial number (serial number 14Vxx.xxxxx)) with LCD Solar Computer S and/or the LCD Battery Computer S or VPC Jupiter with Smart Shunt, also transmits the values shown on the corresponding display to a mobile device via Bluetooth. The required app for Android or IOS is available free of charge in the Google Play Store or IOS App Store

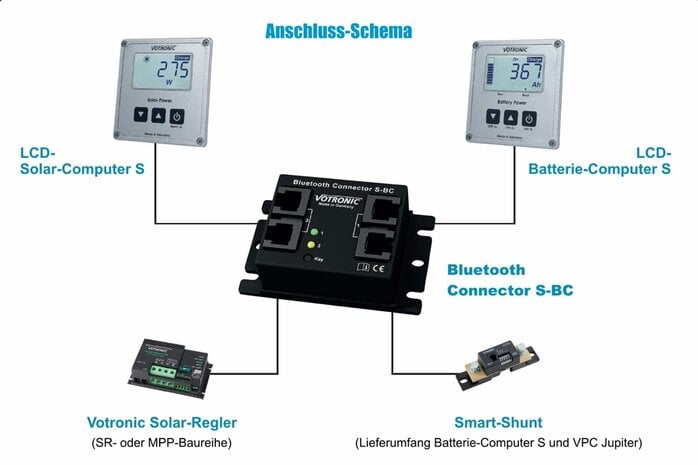

Connecting the Bluetooth Connector S-BC is very easy. It is simply plugged between the Votronic solar charge controller and the LCD Solar Computer S or between the Smart Shunt and the LCD Battery Computer S or VPC Jupiter using the modular cable included in the scope of delivery.

The device has 2 inputs and 2 outputs, so that 1 solar controller with LCD solar computer and 1 Smart Shunt with LCD battery computer or VPC Jupiter can be connected together to a communication module.

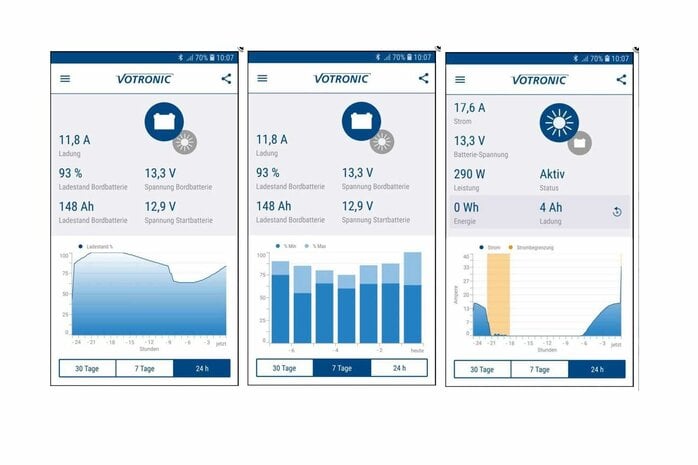

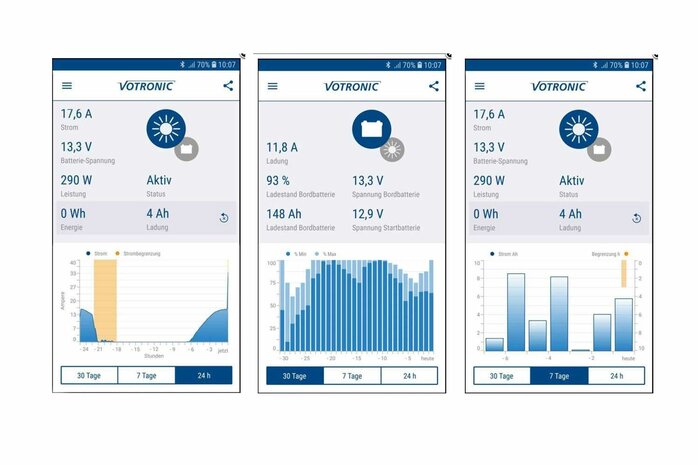

In this way, all the information from the on-board battery, such as voltage, charging and discharging currents and the remaining capacity, as well as all the data from the solar system can be conveniently read via a cell phone or tablet. In addition, the most important data is logged, graphically processed and stored for a longer period of time. It is even possible to output the data as a CSV file for your own analysis purposes. Of course, the Bluetooth Connector S-BC can also be retrofitted at any time.

Technical features

• Connection via Bluetooth 4.0 (2.4Ghz)
• Range up to 50 outdoors
• Compatible with Votronic solar controller, VBCS Triple Charger, LCD battery computer and VPC Jupiter
• Dimensions HxWxD in mm: 75 x 47 x 24
• Weight: 37g
• Test mark: CE, E-test (EMC/vehicle directive)

Scope of delivery:

Votronic Bluetooth Connector S-BC (MPN 1430), operating instructions, 2 x control cable 6-pin 1m long
