This solar system 100W Advanced-Set LiFePO4 - SMALL, comes with a 60Ah LiFePO4 battery. This makes it the perfect small solar set with battery for a self-sufficient power supply. Ideal for a garden shed, forest hut, alpine hut or wherever you need electricity "off-grid", so to speak, away from the public power grid.

The expected daily output of the module from April to October is around 500 watt hours (Wh) on average and up to 800 Wh in good conditions. With 60Ah, the A60 delivers a total of 768 Wh. This is enough battery capacity to bridge two cloudy days and charge an I Phone 60 times, charge a laptop 10 times or keep 8 LED spotlights lit for 120 hours.

Installation takes less than two hours - experienced hands are much quicker. A complete installation diagram is included in the operating instructions for the solar charge controller, enabling even complete beginners to master the installation quickly and successfully

This solar system 100W Advanced-Set LiFePO4 - SMALL from Voltima: simple, proven, high quality

Voltima is a Volitmax own brand and is valued by customers for its high quality and durability at an affordable price.

Components of the solar system

All components of the set are listed and linked above.

You can click on the yellow text to open the products individually and get more detailed information about them.
If you want to change individual components of the set (for example, because the solar modules we suggest are too large or too small for your application) you can simply open all the products listed individually, add them to your shopping cart and then make the adjustments in your shopping cart.

You can also do this if you want to replace individual products that are currently out of stock with items that are in stock. (As soon as only one product of the set is out of stock, the whole set will be displayed as "back soon", although most of the products are probably in stock)

If you are unsure, you are welcome to contact us. The best way to do this is to send us an email to [email protected].

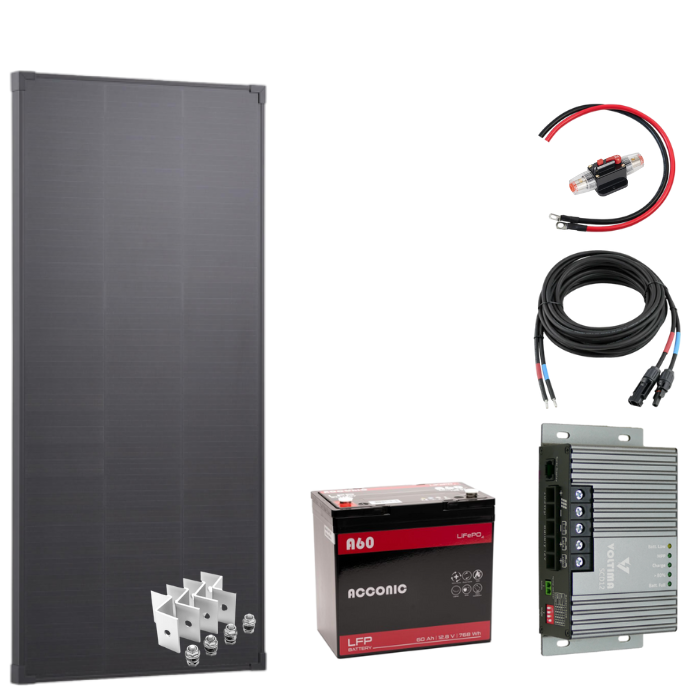

The components of the set:

Acconic A60 LiFePO4 12V lithium supply battery 60Ah

Lithium batteries offer a number of advantages over conventional lead or AGM batteries and have become the new standard thanks to the sharp drop in prices.

• Longevity: LiFePO4 batteries last over 3000 cycles at 80% DOD and even over 5000 cycles at 50% DOD. This means that you probably won't have to change the battery for decades, which is significantly cheaper than lead or AGM in the long term, despite the slightly higher purchase costs.
• Lightness / low weight: You can also save a lot of weight with a lithium battery, as they only weigh approx. 30-40% of the weight of lead or AGM with twice the usable capacity. So with 15 kg of lithium, you can enjoy the same usable capacity as 80 kg of lead-acid or AGM. This makes their use much more flexible and easy on the back
• Absolutely safe, gas-free and heat-tolerant. The combination of lithium, iron and phosphate does not release any oxygen. The battery can therefore not burn or explode.
• Low self-discharge and an integrated battery management system (BMS) mean you don't have to worry about damaging your battery through deep discharge.
• With 60Ah, the A60 delivers a total of 768 Wh. This is enough battery capacity to bridge two cloudy days and, for example, charge an I Phone 60 times, charge a laptop 10 times or keep 8 LED spotlights lit for 120 hours.

If 60Ah or 768 Wh is not enough battery capacity for you, you can either choose one of our larger sets with battery or put the set together manually in your shopping cart with an A80 or A100.

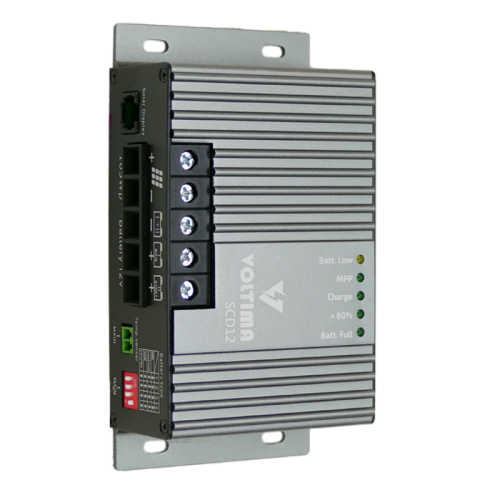

VOLTIMA SCD12 MPPT solar charge controller Dual 12V 165Wp 50V 12A

MPPT solar charge controllers have the most modern and efficient technology installed and get the most power from your solar modules. With MPPT technology, the controller automatically determines the maximum power output (MPP) of the solar modules several times per second. A Bluetooth dongle for monitoring the charging data via smartphone app or a permanently installable monitor can be purchased separately if required.

• Two battery charging outputs: For example, for main supply on-board battery as well as backup charging and charge retention of the starter battery in the motorhome
• Switchable charging characteristics for optimum charging of lead gel/dryfit, AGM/fleece or acid/wet batteries as well as LiFePO4 batteries
• Standard protection against overload, overcharging, overheating, reverse polarity and reverse battery discharge
• and much more

VOLTIMA Genio GSM100-40 solar module 100 watt monocrystalline

This module has state-of-the-art monocrystalline solar cells and comes in the popular full-black look.
The sturdy black anodized aluminium frame ensures simple but secure and flexible installation.
Safety glass panels provide optimum protection against mechanical influences such as hail.
The two permanently installed connection cables are ready for immediate use thanks to the widely used MC4 connectors.
Excellent price/performance ratio with first-class quality.

Alternatively, you can also mount a bifacial module such as the BSM100-40 or simply attach a flexible panel such as the GSM100F-36 with mounting tape.

• The expected daily output (April to October), if mounted at the right angle to the sun, is 500 Wh/day on average (max. 800 Wh in good conditions)
• Dimensions of the module: 1160 x 450 x 30 mm

VOLTIMA 38mm aluminum Z-angle HSZ38 bracket

Four aluminum brackets with which the module can be easily and securely screwed to a wide variety of surfaces.

VOLTIMA 5m 6mm² professional connection cable solar module to solar charge controller

Extension cable from the modules to the charge controller

Voltima battery cable terminal to screw terminal connection 2 meter

Connection cable from the charge controller to a battery

Voltima automatic fuse 20A max. 58V

The automatic fuse for interposing in the positive cable directly behind the battery also serves as a main switch with which the system can be conveniently switched off and on.

Possible extensions

- Battery monitoring
- Charge controller monitoring

Under "Accessories" we have listed many other useful products that you can use to optimize, supplement or adapt your solar system to your specific needs.

Before ordering:

Take a close look at the place where the solar module is to be installed and measure whether there is really enough space. Also think carefully about where your cables should run, where your charge controller should be installed, where the battery will be located and how long the extension cable from the solar cells to the charge controller and from the charge controller to the supply battery should be. If the 5 meters of solar cable and 1 meter of charge controller cable provided in the set are not enough, you can adjust the set manually. To do this, simply open all the items in the set individually and add them to your shopping cart. You can then delete items from your shopping cart and add other items (e.g. a longer extension cable)

Use the connection diagram in the operating instructions for the solar charge controller for installation.

AIS Batterien GmbH accepts no liability for application errors during installation or any necessary changes or damage to the installation object, not even if the product has to be dismantled again due to a material defect; in such cases, replacement can only be provided for the product itself.
