Solar Hook mounting package balcony for square vertical balusters - for 1 module
Product information "Solar Hook mounting package balcony for square vertical balusters - for 1 module"
Harness the power of the sun on your balcony with Solar Hook.
High-quality and flexible PV mounting system for almost all balcony railings. PV installation is quick and easy, no structural changes to the balcony railing are necessary. The mounting bracket can be attached to your solar module in just one minute and then effortlessly hooked onto the balcony railing.
SOLAR-HOOK for 'square' vertical railing bars / rungs - for 1 module
This set is specially designed for balcony railings with square or right-angled vertical balusters.
- For round handrails (max. 50 mm ø)
- Suitable for a solar panel up to a length of 1760 mm.
For a better understanding of whether this set is suitable for your balcony railing, take a look at the instructions (PDF files) in the download area.
Why Solar-Hook ?
- Simple and quick installation
- High-quality and durable components
- All required parts in one set
- Efficient installation of solar modules
- Optional mounting of the micro inverter available, suitable for any balcony.

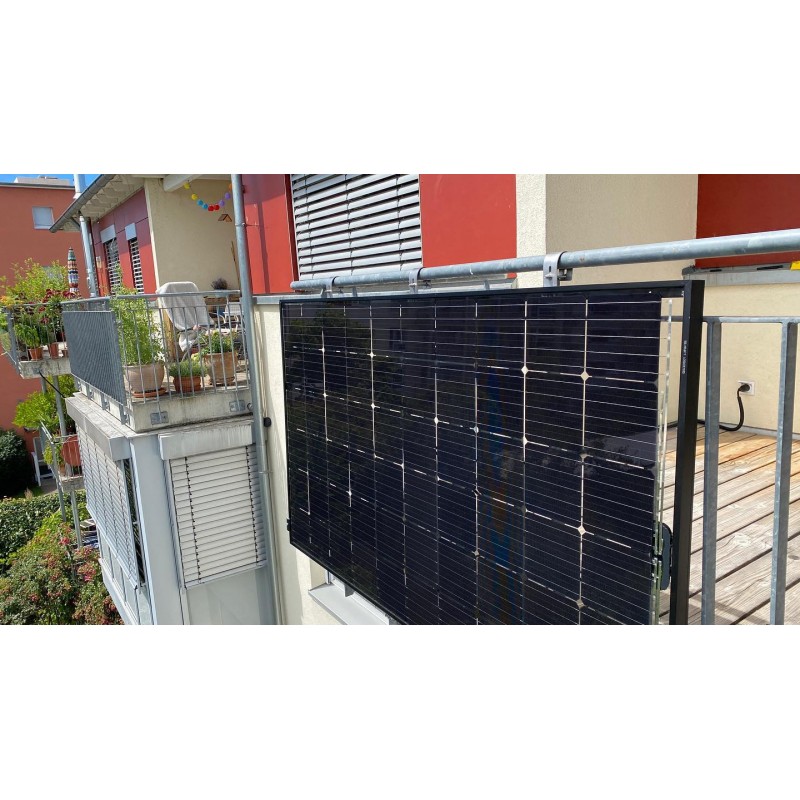

- Solar modules can be hung on the balcony railing in a similar way to flower boxes.
- Double security thanks to brackets and screw connection.
Safety and security

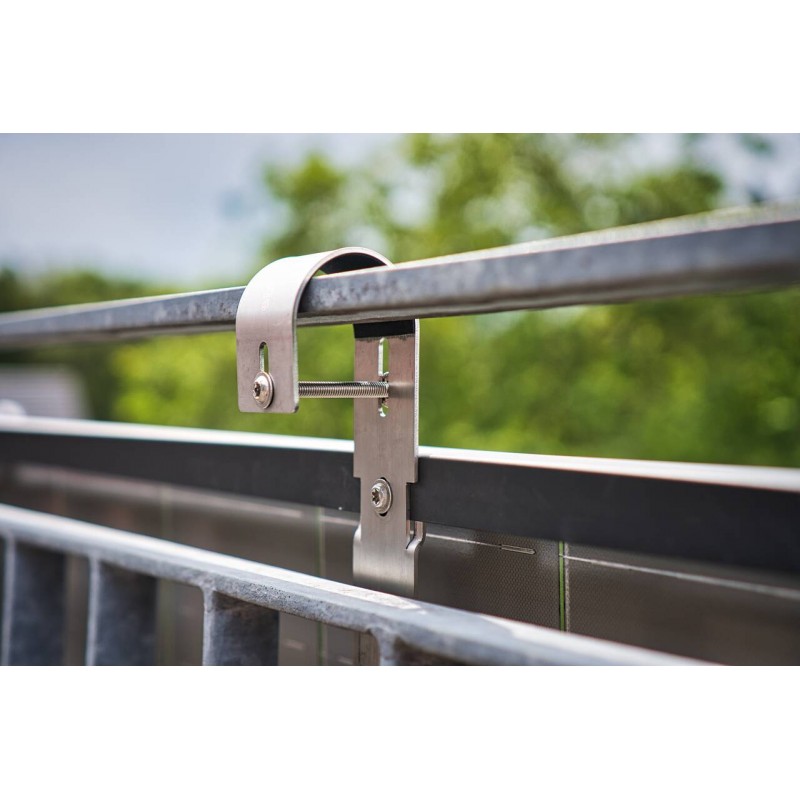

Solar-Hook offers you double security with its intelligent mounting system for solar installations. Our PV mounting systems are securely fastened to the frame of the PV modules using a pair of lugs. In addition, a long screw underneath the handrail provides additional stability. This ensures that the solar module is mounted absolutely securely and firmly to your balcony railing. Our PV mounting system therefore not only offers you reliable fastening, but also maximum safety.
Flexibility
In addition, the flexible mounting bracket from Solar-Hook is characterized by its versatility and can be used on practically any standard balcony railing. It also offers the option of attaching smaller solar module inverters directly to the mounting device. This eliminates additional work steps and saves you time and effort when installing your solar systems. Our high-quality PV mounting system technology enables you to mount your PV solar systems reliably and ensures stable and secure installation.
Frequently asked questions
Is a Solar Hook waterproof?
Yes, the Solar Hooks are designed to be weatherproof with an additional protective layer, making them ideal for outdoor use in a variety of weather conditions.
Has the Solar Hook been tested for safety?
Yes, the PV mounting system has been statically calculated to ensure that it meets all relevant safety standards and regulations.
How can I hang a Solar Hook?
A Solar Hook can be easily attached to solar panels and can be attached to balcony railings with end clamps.
Can I simply remove a Solar Hook and reuse it in another location?
Yes, a solar panel mount is often designed so that it can be easily removed and reused in another location. This can be particularly useful if you want to use it in a temporary location or for mobile use.

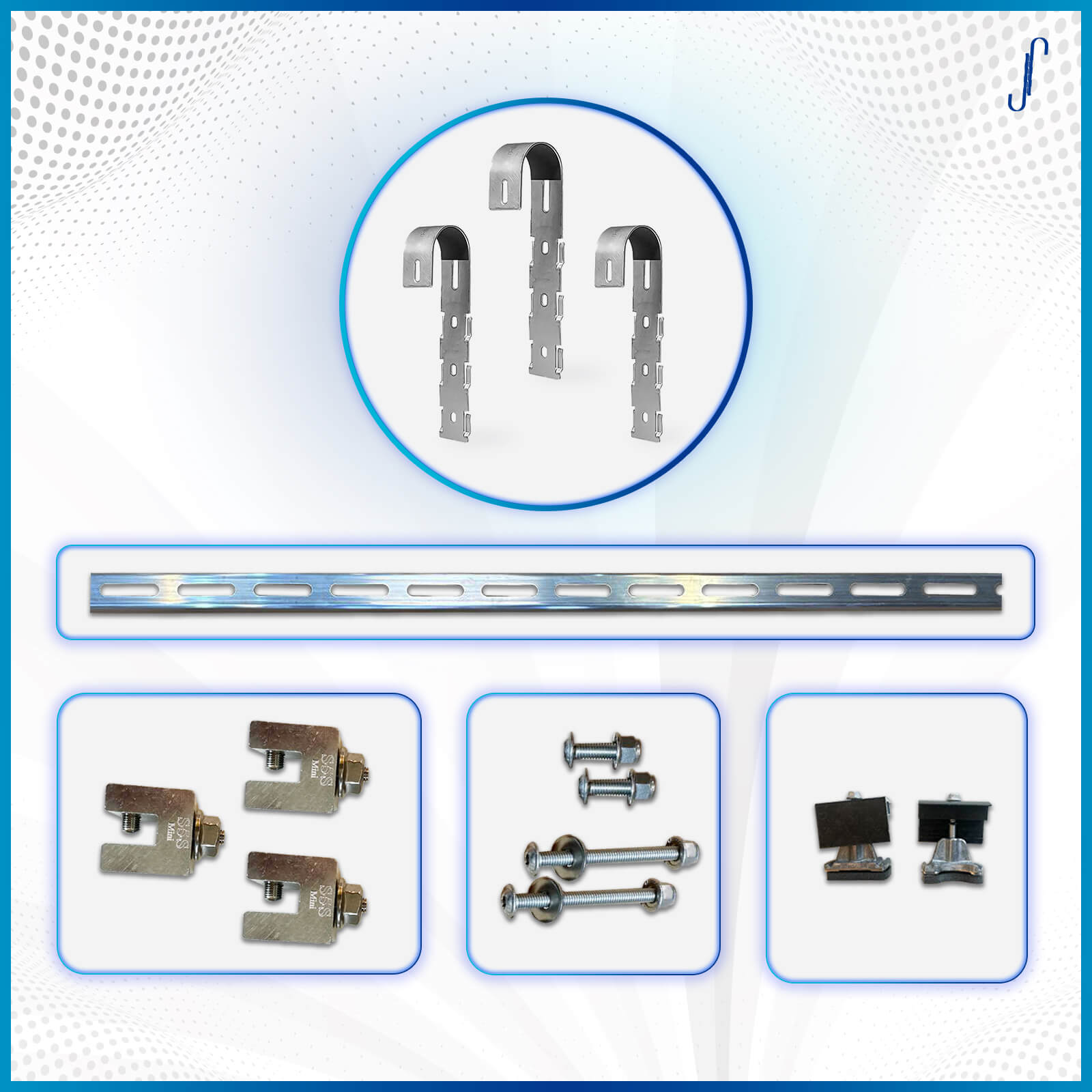

Mounting kit for 1 module consisting of:

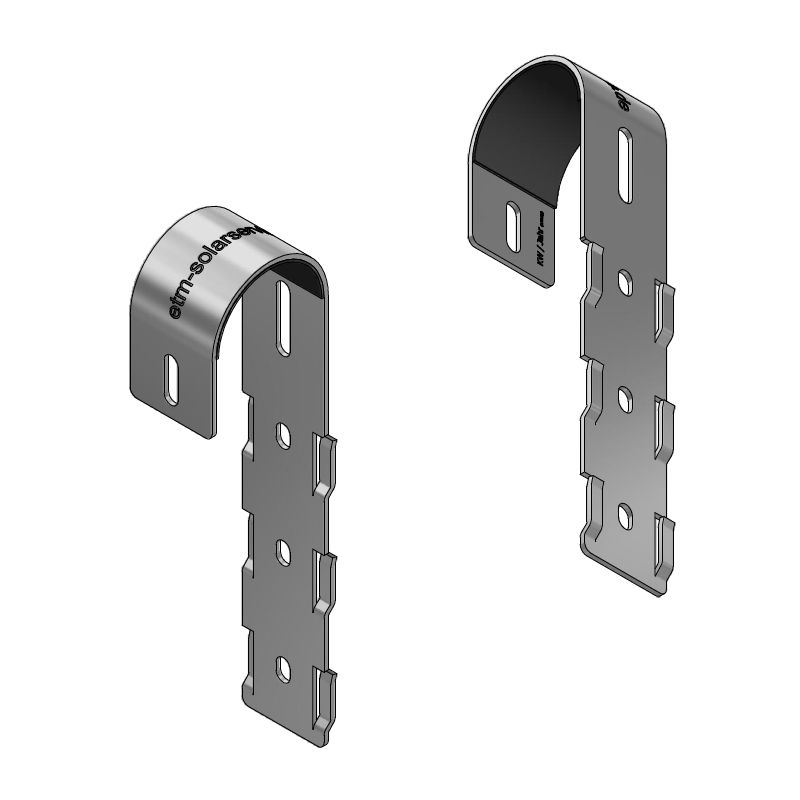

3x Solar Hook (complete set incl. screws also for the module inverter)
1x mounting rail 1.80 m +/- 5mm
3x special clamps for mounting on 'angular' vertical balusters / rungs
2x module clamps, matching the rail and module for 30-42 mm module frames in black
| Artikelgewicht: | 3,00 Kg |
|---|---|
| Artikelnummer Hersteller: | SH-MTG-SH-E |
| Dachart: | Balkon |
| Dimensions (L x W x H): | für Module bis 1760 mm Länge |
| Material: | Aluminium, Rostfreier Stahl |
