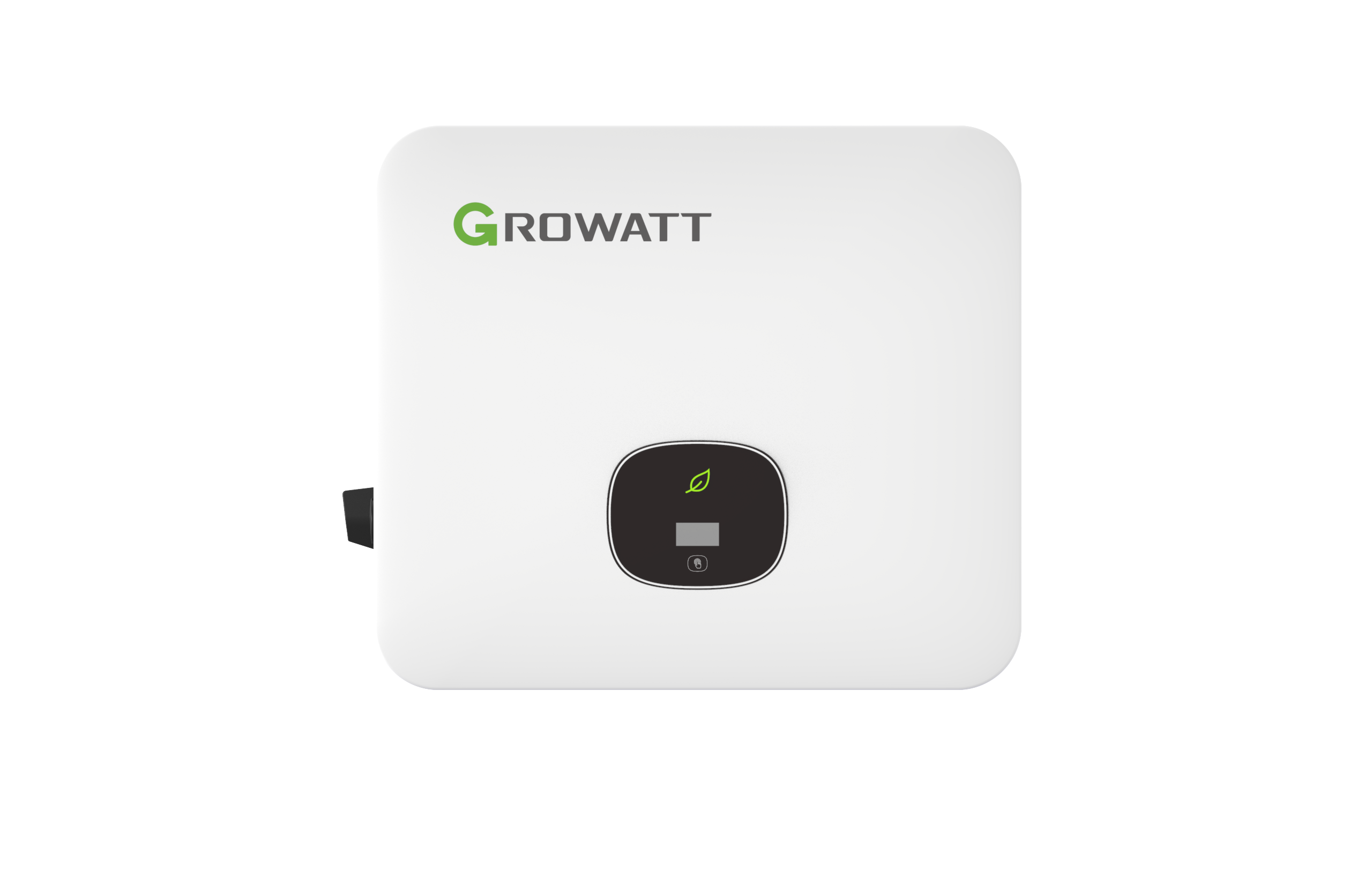

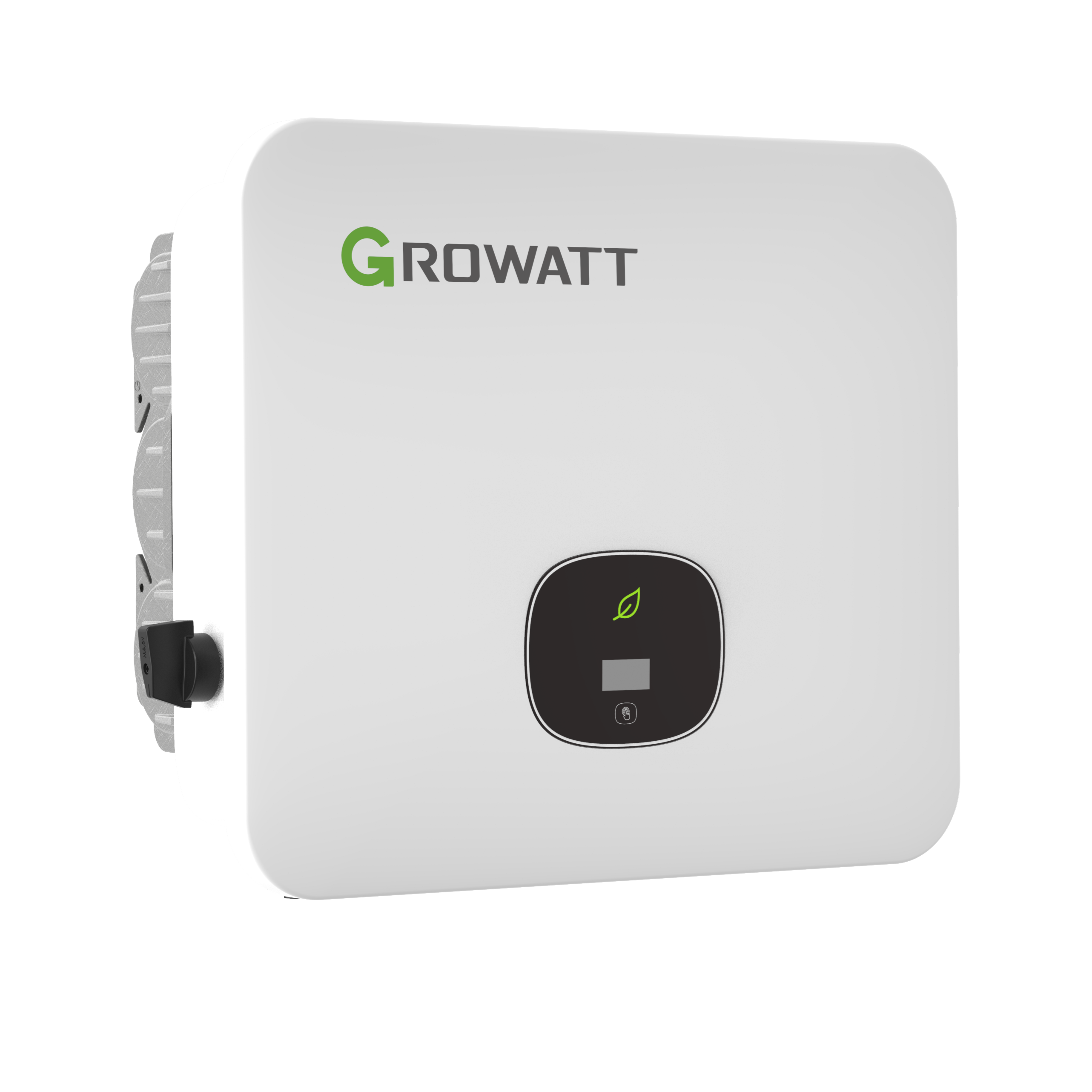

Growatt MOD 6000TL3-HU 6kW Hybrid Inverter with Integrated SYN (VAT-Exempt)

The Growatt MOD 6000TL3-HU hybrid inverter (MPN MOD 6000KTL3-HU) is a three-phase inverter designed for high performance and compactness, ensuring simple and user-friendly operation of large solar systems.

The inverter features a high efficiency of 98.3%, making it a powerful and flexible solution for system configuration. In addition to two independent MPPT inputs and a maximum PV power of 12,000 W, the inverter is equipped with an OLED touch display, providing clear advantages for easy and intuitive operation. Loads and batteries can also be connected, with the APX battery system being compatible.

With this inverter, no additional SYN backup box is required for off-grid operation.

The MOD-HU Series:

• 2 independent MPPTs
• Battery-ready and future-proof
• Type II SPD on both DC and AC sides
• Integrated AFCI function
• Export limitation support
• OLED display with touch button
• DC/AC ratio up to 2.0
• Off-grid functionality with integrated backup box (no additional SYN box required)

Hybrid Inverter

Unlike conventional inverters, hybrid inverters can not only feed the generated solar energy into the grid but also store it in batteries. This allows solar energy to be available even when the sun is not shining. Another key feature is the ability to optimize household energy consumption by prioritizing direct usage of solar power before exporting it to the grid.

Active Safety with AFCI Function

An Arc Fault Circuit Interrupter (AFCI) is a protective device designed to safeguard electrical circuits against arc faults. In low-voltage installations, it acts as a protective switch against contact faults. It continuously analyzes current and voltage patterns using digital signal processing and disconnects circuits when fault signatures are detected.

Commonly referred to as a “fire protection switch,” the AFCI helps prevent overheating at poor contact points or electrical arcing between conductors, thereby reducing fire risks.

Two MPP Trackers for Optimal Solar Yield

Maximum Power Point Tracking (MPPT) technology ensures the highest possible energy yield from a solar system. It continuously determines the optimal relationship between irradiation, module temperature, and solar cell type throughout the day.

With two MPPT trackers in the MOD inverter, the optimal operating point for multiple PV strings can be optimized independently. This means that shading on one string does not affect the performance of the other.

Operating Modes – Configurable Depending on System Requirements

• Operating Mode: The MOD-HU converts DC power from PV strings into AC power and feeds it into the grid. If the output no longer meets grid requirements, normal operation is stopped.
• Fault Mode: The inverter monitors system status in real time. In case of faults, error information is displayed and the inverter disconnects from the grid.
• Shutdown Mode: The inverter automatically shuts down when solar irradiation is insufficient.

AC & DC Type II SPD

AC and DC Type II surge protection devices (SPDs) protect grid-connected inverters from overvoltage and are essential for system safety and reliability. AC SPDs protect the alternating current side, while DC SPDs protect the direct current side. They safely discharge excess voltage caused by lightning strikes, grid switching, or other events.

Comprehensive Protection Features

• DC / AC surge protection (Type II)
• DC reverse polarity protection and disconnector
• Insulation resistance monitoring
• AC short-circuit protection
• Grid, residual current, and string monitoring
• Anti-islanding protection
• AFCI protection (arc fault detection)

Growatt Monitoring Platform (optional)

With optional Shine-series accessories, the Growatt monitoring platform can be used via smartphone app (iOS and Android) or via a web interface. The Shine accessories must be purchased separately, while the use of the platform is free of charge.

Through the platform, all Growatt devices can be configured and monitored, including visualization of self-consumption and performance trends.

Compatible Shine options for the MOD 3000–9000TL3-HU series:

• WiLan-X2
• Grohome
• Shinemaster-X

Technical Data

Input (DC)

• Max. PV power: 12,000 W
• Max. input voltage: 1000 V
• Start voltage: 160 V
• Nominal voltage: 600 V
• MPPT voltage range: 140–1000 V
• Max. input current per MPPT: 20 A
• Max. short-circuit current per MPPT: 25 A

Battery Input (DC)

• Compatible with APX battery system with BMS P2
• Operating voltage range: 600–980 V
• Max. operating current: 25 A
• Max. charging power: 15,000 W
• Max. discharging power: 6,000 W

Output (AC)

• Rated AC power: 6,000 W
• AC voltage range: 220V/380V, 230V/400V
• Frequency range: 50/60 Hz (45–55 Hz / 55–65 Hz)
• Max. output current: 10 A

General

• Max. efficiency: 98.3%
• Dimensions: 468 × 408 × 202 mm
• Weight: 19 kg
• Operating temperature: -25°C to +60°C
• Protection class: IP66
• Manufacturer warranty: 10 years

Scope of Delivery

• 1× Growatt MOD 6000TL3-HU hybrid inverter with integrated SYN (backup box)
