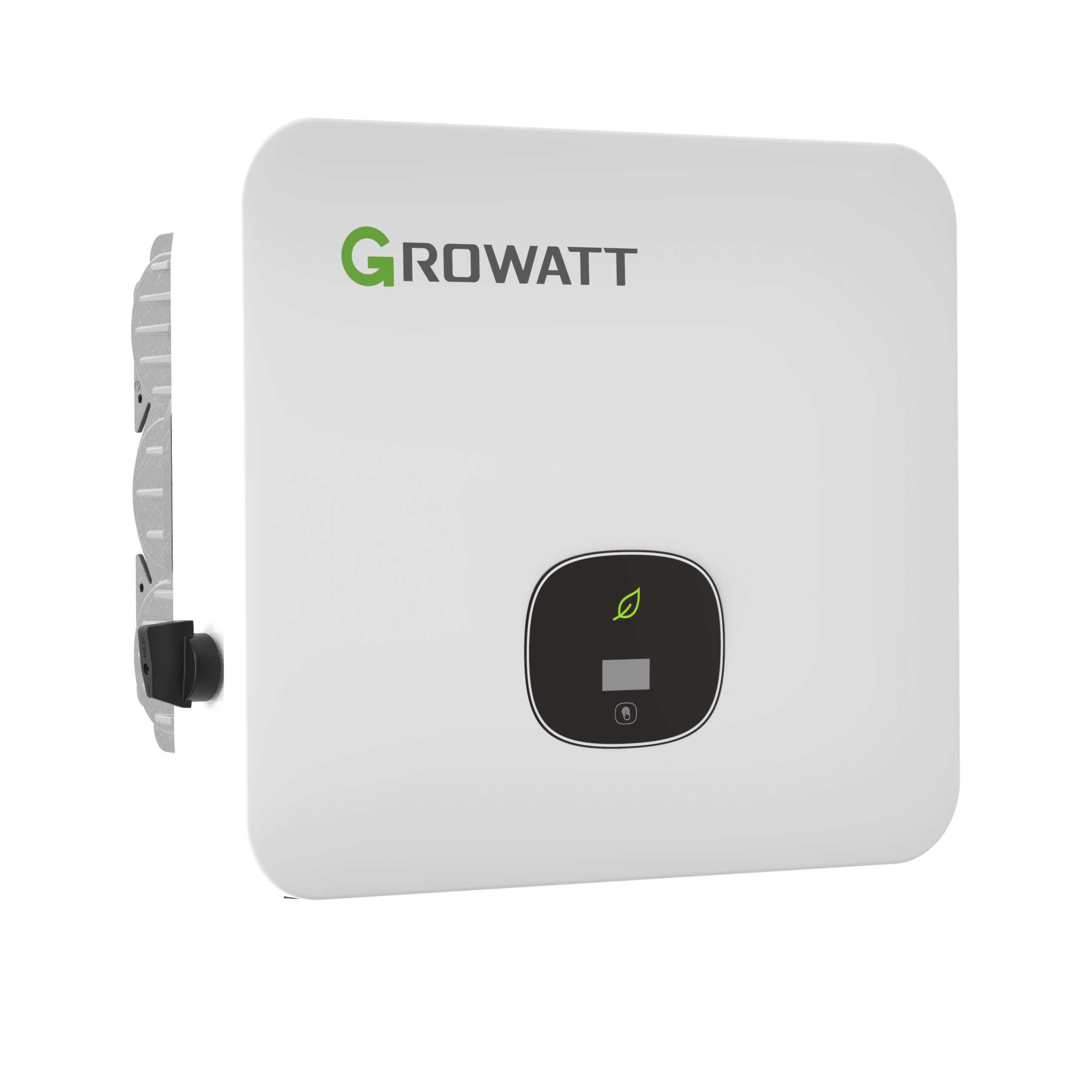

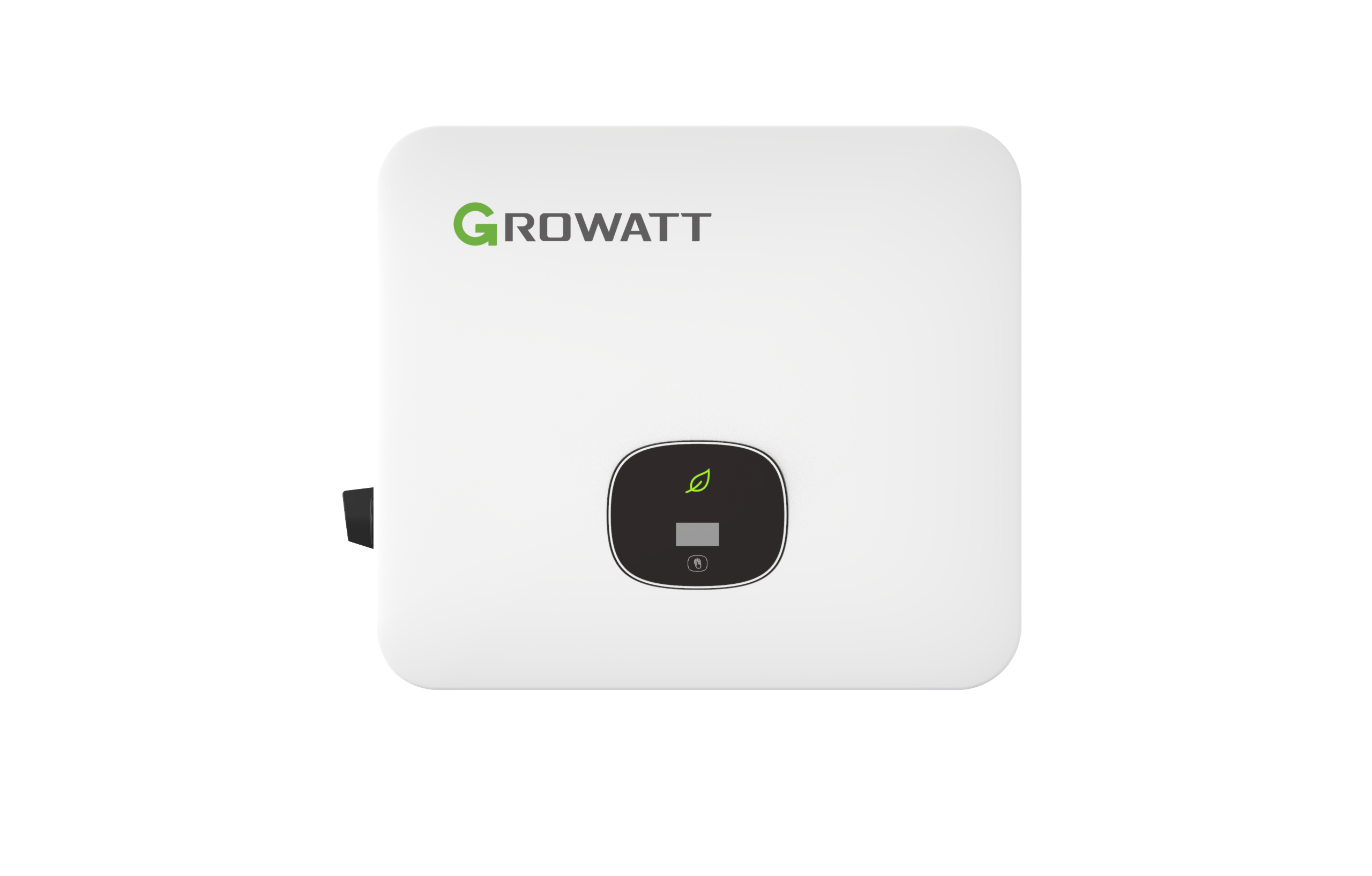

Growatt MOD 3000TL3-HU 3kW Hybrid Inverter with Integrated SYN (VAT-exempt)

The Growatt MOD 3000TL3-HU Hybrid Inverter (MPN MOD 3000KTL3-HU) is a three-phase inverter designed for easy and user-friendly operation of large-scale solar installations thanks to its high performance and compact design. The inverter features a high efficiency of 98.6%, making it a powerful and flexible device for system configuration. In addition to 2 independent MPPT inputs and a maximum PV power of 6000W, the inverter is equipped with an OLED touch display, which provides a major advantage for simple and intuitive operation. Furthermore, loads and batteries can be connected. It is compatible with the APX battery system.

With this inverter, no additional SYN Backup Box is required for off-grid operation.

MOD-HU Series:

• 2 independent MPPTs
• Battery-ready, future-proof design
• Type II SPD on both DC and AC side
• Integrated AFCI function
• Export limitation support
• OLED display with touch buttons
• DC/AC ratio up to 2.0
• Off-grid function with integrated backup capability (no additional SYN box required)
• Hybrid inverter

Unlike conventional inverters, hybrid inverters can not only feed solar energy into the grid but also store it in batteries. This ensures solar power is available even when the sun is not shining. Another advantage is the ability to optimize household energy consumption by prioritizing direct use of solar power before feeding it into the grid.

Active Safety with AFCI Function

An Arc Fault Circuit Interrupter (AFCI) is an arc fault protection device. It protects electrical circuits against arc faults and acts as a protective switch against contact faults in low-voltage installations. In addition to protection, it analyzes current and voltage waveforms using digital signal processing and disconnects circuits when fault signatures are detected. The AFCI is also commonly referred to as a fire protection switch, as it can prevent overheating at poor contact points or arc events between conductors, thereby reducing fire risks.

Three MPP Trackers for Optimal Solar Yield

Maximum Power Point Tracking (MPPT) technology ensures the highest possible energy yield from a PV system. The MPPT continuously determines the optimal balance between irradiance, module temperature, and solar cell characteristics throughout the day. With the inverter’s two MPPT trackers, the optimal operating point can be independently optimized for different PV strings. Since the trackers operate independently, shading on one string does not affect the other.

Operating Modes – Configurable depending on system requirements

Operating Mode: The MOD-HU converts DC power from the PV strings into AC power and feeds it into the grid. If the output power does not meet grid-connected requirements, the inverter switches off normal operation.

Fault Mode: The inverter monitors and regulates system status in real time. If system or inverter faults occur, the display shows error information and disconnects the inverter output from the grid.

Shutdown Mode: In low or no solar irradiation conditions, the inverter shuts down automatically.

AC & DC Type II SPD

AC and DC Type II surge protection devices (SPDs) protect grid-tied inverters from overvoltage and are essential for the safety and reliability of PV systems. AC SPDs protect the AC side, while DC SPDs protect the DC side of the inverter. These devices divert excessive voltage surges caused by lightning strikes, grid switching operations, or similar events.

Comprehensive Protection Functions

• DC / AC surge protection: Type II
• DC reverse polarity protection and disconnect switch
• Insulation resistance detection
• AC short-circuit protection
• Grid, residual current, and string monitoring
• Anti-islanding protection
• AFCI arc fault protection

Growatt Monitoring Platform (via optional accessories)

With optional Shine series accessories, the Growatt monitoring platform can be used. It is available as a smartphone app (iOS and Android) as well as a web version. The Shine accessories must be purchased separately, while platform usage is free of charge. Through Shine, all Growatt products can be configured and monitored, including self-consumption and trend analysis.

Compatible Shine options for the MOD 3000–9000TL3-HU series:

• WiLan-X2
• Grohome
• Shinemaster-X

Technical Data

DC Input (PV):

• Max PV power: 6000W
• Max input voltage: 1000V
• Start voltage: 160V
• Rated voltage: 600V
• MPPT voltage range: 140–1000V
• Max input current per MPPT: 20A
• Max short-circuit current per MPPT: 25A

DC Input (Battery):

• Compatible with APX battery system with BMS P2
• Operating voltage range: 600–980V
• Max operating current: 25A
• Max charge power: 9000W
• Max discharge power: 3000W

AC Output:

• Rated AC power: 3000W
• AC voltage range: 220V/380V, 230V/400V
• Frequency range: 50/60 Hz (45–55Hz / 55–65Hz)
• Max output current: 5.0A

General:

• Max efficiency: 98.3%
• Dimensions: 468 × 408 × 202 mm
• Weight: 19 kg
• Operating temperature: -25°C to +60°C
• Protection class: IP66
• Manufacturer warranty: 10 years

Delivery Content

• 1× Growatt MOD 3000TL3-HU Hybrid Inverter with integrated SYN (backup box)
