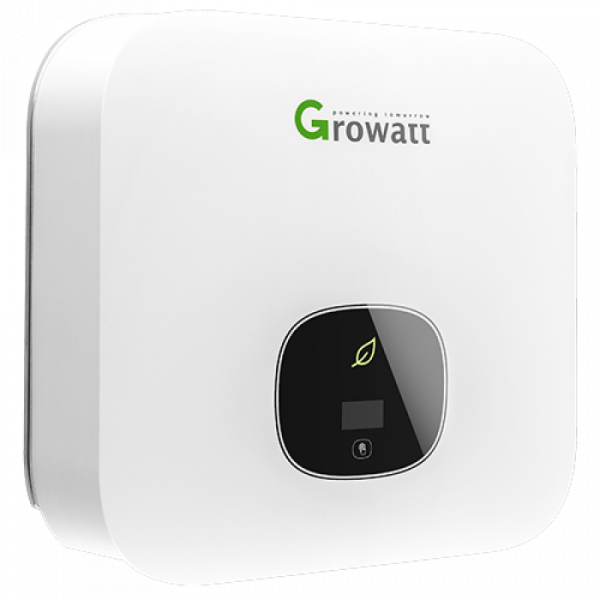

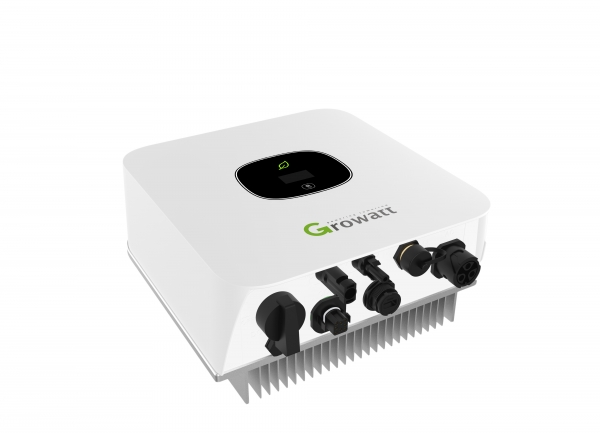

The Growatt MIC 1000TL-X inverter is a lightweight and compact on-grid inverter, also known as a micro inverter, with which you can feed your solar energy into the home grid.

It is ideal for use with a small solar system, for example on balconies, garden sheds, garages or areas with shading.

The inverter is suitable both for new systems and for retrofitting and can be combined with all types of solar module.

The inverter has 1 MPPT tracker with a maximum input current of 13A.

High safety is an important aspect and is achieved through several features such as built-in DC switch, overvoltage protection and reverse polarity protection.

The inverter uses natural convection cooling, which means that there is no mechanically noisy cooling system. It also has fewer moving parts, less maintenance and a lower risk of malfunction.

At only 6 kg. It is one of the smallest inverters on the market. This makes the Growatt MIC 1000TL-X inverter easy and quick to set up by an installer, saving time and money.

Specifications:

• Efficiency up to 97.4
• Mpp voltage range: 50-500V
• Max. Output power: 1000W
• Max. Output current: 4.8A
• Max. PV input power: 1400W
• Maximum input current: 13A
• Self-consumption at night: <0.5W
• Mpp tracker / strings: 1
• Number of phases: 1
• DC connection: MC4
• Very quiet thanks to convection cooling
• Built-in DC switch for solar cells
• Approvals: VDE 0126-1-1, VDE-AR-N 4105:2018 and others.
• IP65
• Dimensions (L x W x H) - 274 x 254 x 138 [mm]
• Weight: 6kg

Installation of the inverter

We always recommend that you contact an authorized electrician when connecting your inverter to ensure a safe and legal installation.

Warranty:

10 year Growatt warranty (see warranty document in downloads)

Installation

We always recommend that you consult an authorized electrician when connecting your battery to ensure a safe and legal installation.

Scope of delivery:

1x Growatt MIC 1000TL-X inverter
